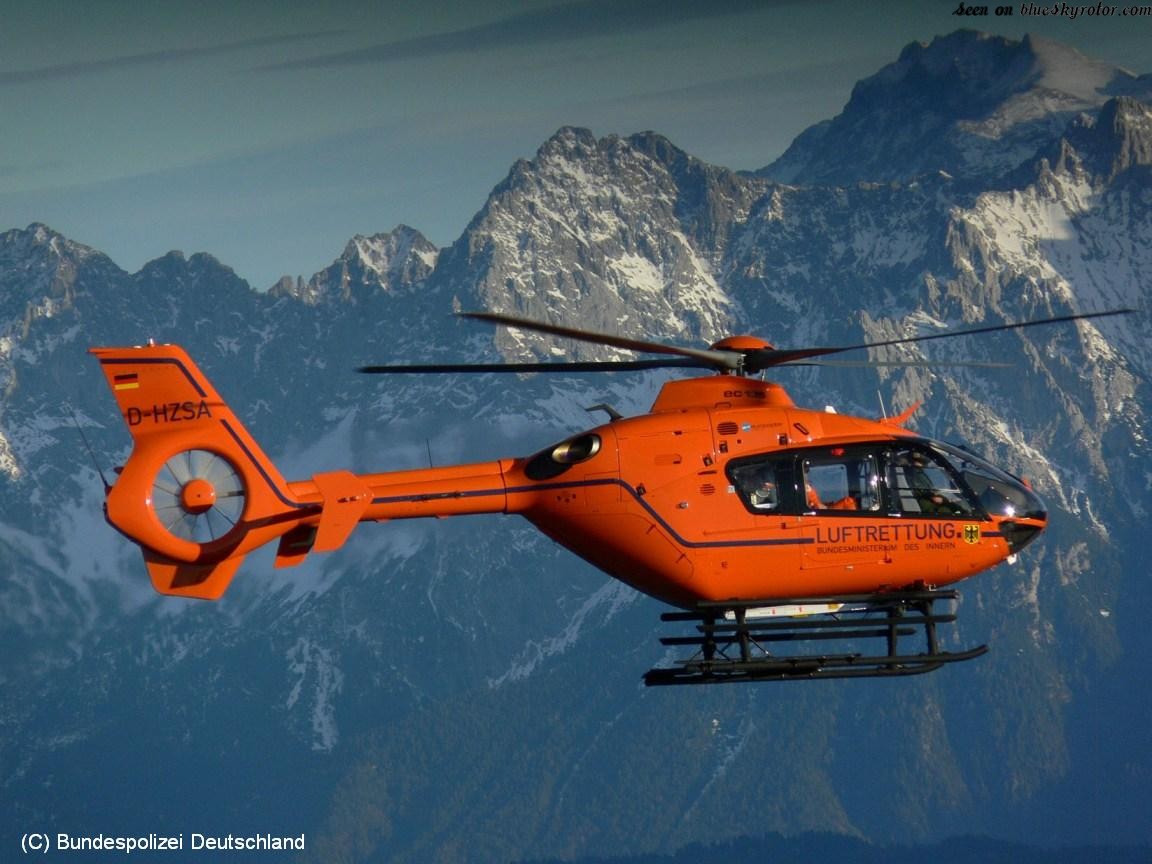

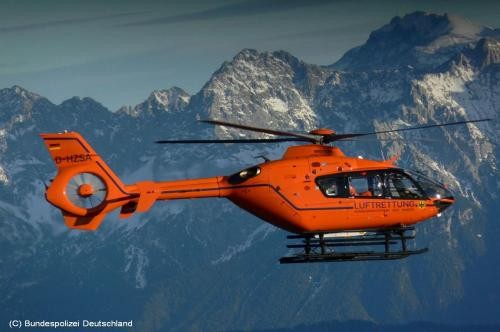

Eurocopter

Manufacturer:

Eurocopter

Country:

Europe

Commercial designation:

EC135

Technical designation:

EC135

Version, Variant:

P1

Type:

Fenestron

Currently produced:

N

Typical missions:

Civil Utility Transport Law

Flight conditions:

IFR

First flight:

1996

Landing system:

skids

Blades number:

4

Tail blades number:

10

MTOW with external loads:

2835 kg

6251.175 lbs

MTOW with only internal loading:

2720 kg

5997.6 lbs

Empty weight:

0 kg

0 lbs

External payload:

230 kg

507.15 lbs

Internal payload:

0 kg

0 lbs

Standard fuel tank:

560 kg

1234.8 lbs

with optionnal external fuel tank:

730 kg

1609.65 lbs

Cruise speed:

226 km/h

122.04 kt

Maximum cruise speed:

257 km/h

138.78 kt

Vne:

278 km/h

150.12 kt

Max negative g @ MTOW:

0 g

Max positive g @ MTOW:

0 g

Range with normal tanks:

645 km

348.3 nm

Max range with auxiliary external tanks:

850 km

459 nm

Max endurance @ min consumption speed:

03:43:00 h:min

Rate of climb @ SL:

8.9 m/s

1751.52 ft/min

Rate of climb @ SL @MTOW:

0 m/s

0 ft/min

IGE max hovering altitude, MTOW:

4140 m

13579.2 ft

IGE max hovering altitude, empty:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, MTOW:

3095 m

10151.6 ft

IGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

OGE max hovering altitude, MTOW:

3430 m

11250.4 ft

OGE max hovering altitude, empty:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, MTOW:

2210 m

7248.8 ft

OGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

Service ceiling ISA, MTOW:

5155 m

16908.4 ft

Max operating altitude, empty weight:

6095 m

19991.6 ft

Highest use Temperature:

50 °C

90 °F

Lowest use Temperature:

-35 °C

-63 °F

APU in HC:

Engine manufacturer:

Pratt & Whitney

Model:

PW206B

Engines quantity:

2

Powerplant category:

turbine

Main rotor rotation speed:

0 rpm

Fuel consumption @ SL @ max continuous speed:

0.26527 kg/kW/h

0.4350428 lbs/hp/h

Minimum consumption speed @ SL:

120 km/h

64.8 kt

Fuel consumption @ eco cruise speed @SL:

200.5 kg/h

442.1025 lbs/h

Fuel consumption @ min consumption speed @ SL:

158.5 kg/h

349.4925 lbs/h

Engines nominal power:

0 kW

0 hp

Transmission shaft max continuous power:

0 kW

0 hp

Transmission shaft max power:

0 kW

0 hp

Takeoff power 5 min:

0 kW

0 hp

OEI 30s power:

0 kW

0 hp

OEI 2min power:

0 kW

0 hp

OEI max continuous power :

0 kW

0 hp

OEI max continuous transmission power:

0 kW

0 hp

OEI 30 sec transmission power:

0 kW

0 hp

OEI 2 min transmission power:

0 kW

0 hp

Overall length:

12.16 m

39.8848 ft

Rotor diameter:

10.2 m

33.456 ft

Tail rotor diameter:

1 m

3.28 ft

Fuselage length:

10.2 m

33.456 ft

Overall height:

3.51 m

11.5128 ft

Main rotor blades chord:

0 m

0 ft

Tail rotor blades chord:

0 m

0 ft

Mast tilt angle:

0 °

Noise at flyover, level:

84 dB EPNL

Noise at flyover, limit:

93 dB EPNL

Noise at takeoff, level:

88 dB EPNL

Noise at takeoff, limit:

94 dB EPNL

Noise at landing, level:

92 dB EPNL

Noise at landing, limit:

95 dB EPNL

Crew:

1

Max pax number:

7

Average price:

2300000 $
