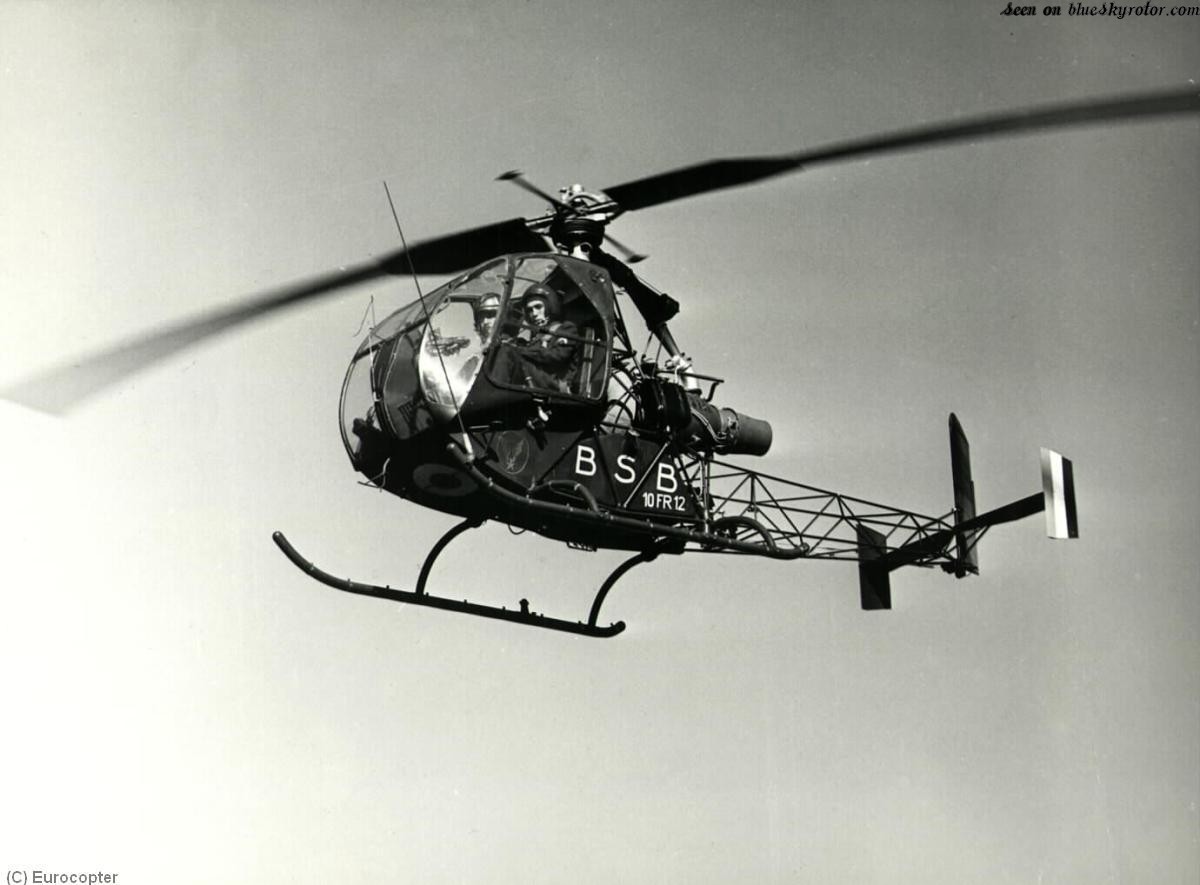

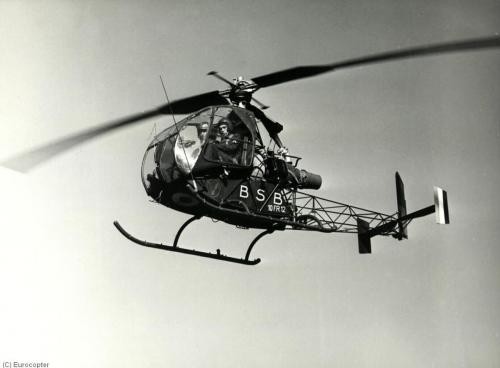

Eurocopter

Manufacturer:

Eurocopter

Country:

Europe

Commercial designation:

Djinn

Technical designation:

SO1221

Version, Variant:

Type:

Blowing tip

Currently produced:

N

Typical missions:

Civil Military Utility Transport Law Rescue

Flight conditions:

VFR

First flight:

1953

Landing system:

skids

Blades number:

2

Tail blades number:

0

MTOW with external loads:

800 kg

1764 lbs

MTOW with only internal loading:

800 kg

1764 lbs

Empty weight:

379 kg

835.695 lbs

External payload:

0 kg

0 lbs

Internal payload:

421 kg

928.305 lbs

Standard fuel tank:

0 kg

0 lbs

with optionnal external fuel tank:

0 kg

0 lbs

Cruise speed:

0 km/h

0 kt

Maximum cruise speed:

110 km/h

59.4 kt

Vne:

130 km/h

70.2 kt

Max negative g @ MTOW:

0 g

Max positive g @ MTOW:

0 g

Range with normal tanks:

200 km

108 nm

Max range with auxiliary external tanks:

0 km

0 nm

Max endurance @ min consumption speed:

02:15:00 h:min

Rate of climb @ SL:

0 m/s

0 ft/min

Rate of climb @ SL @MTOW:

0 m/s

0 ft/min

IGE max hovering altitude, MTOW:

0 m

0 ft

IGE max hovering altitude, empty:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

OGE max hovering altitude, MTOW:

0 m

0 ft

OGE max hovering altitude, empty:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

Service ceiling ISA, MTOW:

4500 m

14760 ft

Max operating altitude, empty weight:

0 m

0 ft

Highest use Temperature:

0 °C

0 °F

Lowest use Temperature:

0 °C

0 °F

APU in HC:

N

Engine manufacturer:

Turbomeca

Model:

Palouste IV

Engines quantity:

1

Powerplant category:

turbine

Main rotor rotation speed:

0 rpm

Fuel consumption @ SL @ max continuous speed:

9.5 kg/kW/h

15.58 lbs/hp/h

Minimum consumption speed @ SL:

0 km/h

0 kt

Fuel consumption @ eco cruise speed @SL:

0 kg/h

0 lbs/h

Fuel consumption @ min consumption speed @ SL:

0 kg/h

0 lbs/h

Engines nominal power:

177 kW

240.543 hp

Transmission shaft max continuous power:

0 kW

0 hp

Transmission shaft max power:

0 kW

0 hp

Takeoff power 5 min:

0 kW

0 hp

OEI 30s power:

0 kW

0 hp

OEI 2min power:

0 kW

0 hp

OEI max continuous power :

0 kW

0 hp

OEI max continuous transmission power:

0 kW

0 hp

OEI 30 sec transmission power:

0 kW

0 hp

OEI 2 min transmission power:

0 kW

0 hp

Overall length:

0 m

0 ft

Rotor diameter:

10.97 m

35.9816 ft

Tail rotor diameter:

0 m

0 ft

Fuselage length:

5.3 m

17.384 ft

Overall height:

2.6 m

8.528 ft

Main rotor blades chord:

0 m

0 ft

Tail rotor blades chord:

0 m

0 ft

Mast tilt angle:

0 °

Noise at flyover, level:

0 dB EPNL

Noise at flyover, limit:

0 dB EPNL

Noise at takeoff, level:

0 dB EPNL

Noise at takeoff, limit:

0 dB EPNL

Noise at landing, level:

0 dB EPNL

Noise at landing, limit:

0 dB EPNL

Crew:

1

Max pax number:

1

Average price:

0 $
