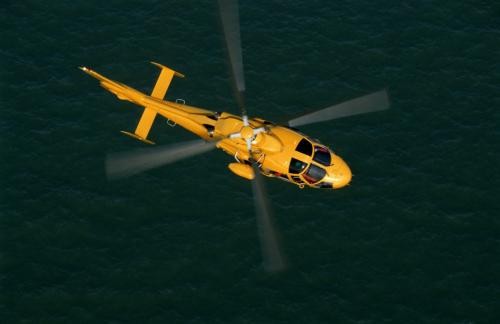

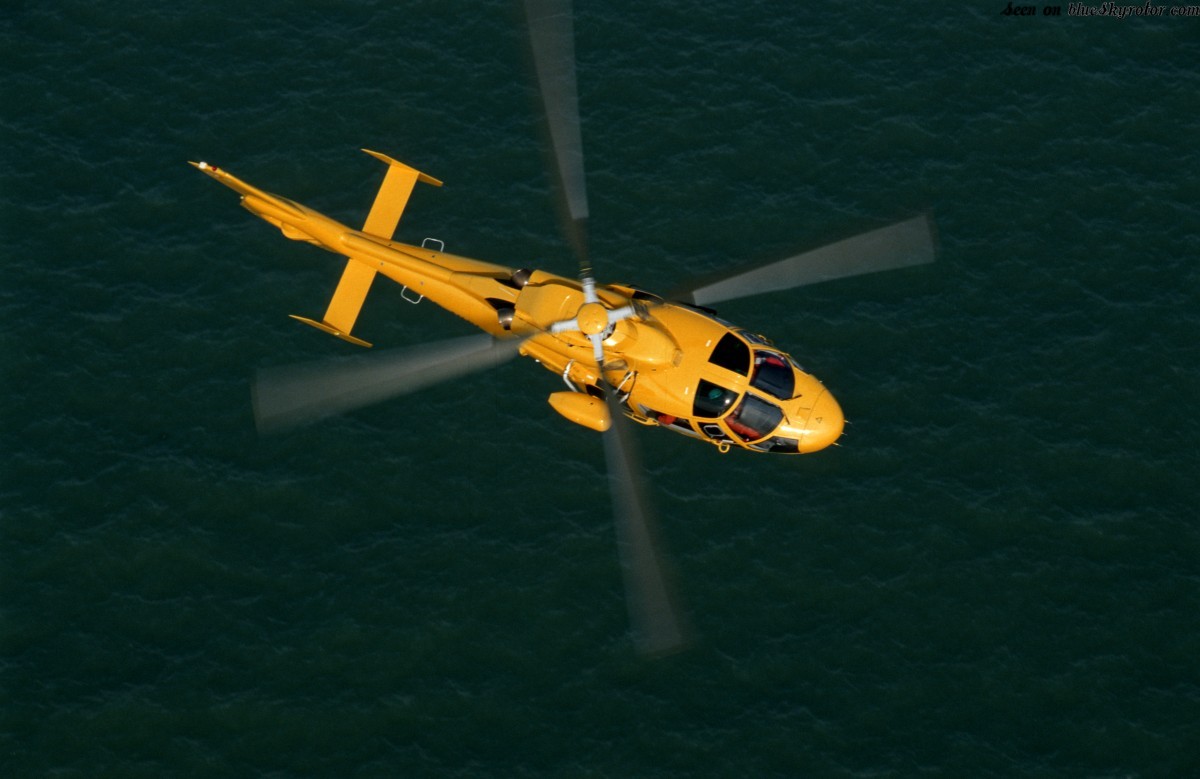

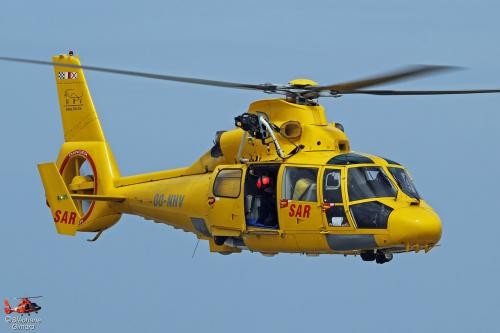

Eurocopter

Manufacturer:

Eurocopter

Country:

Europe

Commercial designation:

Dauphin 2

Technical designation:

AS365

Version, Variant:

N3

Type:

Fenestron

Currently produced:

N

Typical missions:

Civil Utility Transport Law Rescue

Flight conditions:

IFR

First flight:

0

Landing system:

wheels

Blades number:

4

Tail blades number:

11

MTOW with external loads:

4300 kg

9481.5 lbs

MTOW with only internal loading:

4300 kg

9481.5 lbs

Empty weight:

2356 kg

5194.98 lbs

External payload:

1600 kg

3528 lbs

Internal payload:

1944 kg

4286.52 lbs

Standard fuel tank:

908 kg

2002.14 lbs

with optionnal external fuel tank:

0 kg

0 lbs

Cruise speed:

0 km/h

0 kt

Maximum cruise speed:

279 km/h

150.66 kt

Vne:

306 km/h

165.24 kt

Max negative g @ MTOW:

0 g

Max positive g @ MTOW:

0 g

Range with normal tanks:

827 km

446.58 nm

Max range with auxiliary external tanks:

0 km

0 nm

Max endurance @ min consumption speed:

04:30:00 h:min

Rate of climb @ SL:

8.9 m/s

1751.52 ft/min

Rate of climb @ SL @MTOW:

0 m/s

0 ft/min

IGE max hovering altitude, MTOW:

0 m

0 ft

IGE max hovering altitude, empty:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

OGE max hovering altitude, MTOW:

0 m

0 ft

OGE max hovering altitude, empty:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

Service ceiling ISA, MTOW:

0 m

0 ft

Max operating altitude, empty weight:

5865 m

19237.2 ft

Highest use Temperature:

0 °C

0 °F

Lowest use Temperature:

0 °C

0 °F

APU in HC:

Engine manufacturer:

Turbomeca

Model:

Arriel 2C2

Engines quantity:

2

Powerplant category:

turbine

Main rotor rotation speed:

0 rpm

Fuel consumption @ SL @ max continuous speed:

0 kg/kW/h

0 lbs/hp/h

Minimum consumption speed @ SL:

0 km/h

0 kt

Fuel consumption @ eco cruise speed @SL:

0 kg/h

0 lbs/h

Fuel consumption @ min consumption speed @ SL:

0 kg/h

0 lbs/h

Engines nominal power:

1558 kW

2117.322 hp

Transmission shaft max continuous power:

0 kW

0 hp

Transmission shaft max power:

0 kW

0 hp

Takeoff power 5 min:

0 kW

0 hp

OEI 30s power:

0 kW

0 hp

OEI 2min power:

0 kW

0 hp

OEI max continuous power :

0 kW

0 hp

OEI max continuous transmission power:

0 kW

0 hp

OEI 30 sec transmission power:

0 kW

0 hp

OEI 2 min transmission power:

0 kW

0 hp

Overall length:

13.73 m

45.0344 ft

Rotor diameter:

11.94 m

39.1632 ft

Tail rotor diameter:

1.1 m

3.608 ft

Fuselage length:

11.63 m

38.1464 ft

Overall height:

4.06 m

13.3168 ft

Main rotor blades chord:

0 m

0 ft

Tail rotor blades chord:

0 m

0 ft

Mast tilt angle:

0 °

Noise at flyover, level:

90 dB EPNL

Noise at flyover, limit:

95 dB EPNL

Noise at takeoff, level:

93 dB EPNL

Noise at takeoff, limit:

96 dB EPNL

Noise at landing, level:

96 dB EPNL

Noise at landing, limit:

97 dB EPNL

Crew:

1

Max pax number:

13

Average price:

4350000 $
