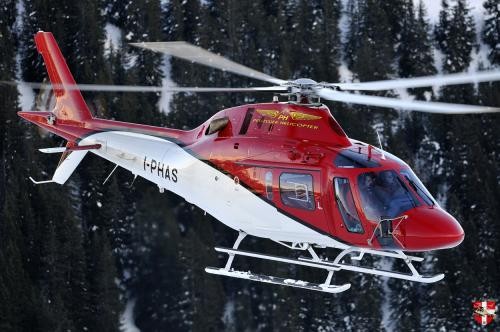

AgustaWestland

Manufacturer:

AgustaWestland

Country:

Europe

Commercial designation:

Koala enhanced

Technical designation:

AW119

Version, Variant:

Ke

Type:

Conventional

Currently produced:

Y

Typical missions:

Civil Military Utility EMS Offshore VIP Law

Flight conditions:

VFR

First flight:

2007

Landing system:

skids

Blades number:

4

Tail blades number:

2

MTOW with external loads:

3150 kg

6945.75 lbs

MTOW with only internal loading:

2850 kg

6284.25 lbs

Empty weight:

1455 kg

3208.275 lbs

External payload:

0 kg

0 lbs

Internal payload:

1700 kg

3748.5 lbs

Standard fuel tank:

696 kg

1534.68 lbs

with optionnal external fuel tank:

0 kg

0 lbs

Cruise speed:

0 km/h

0 kt

Maximum cruise speed:

257 km/h

138.78 kt

Vne:

282 km/h

152.28 kt

Max negative g @ MTOW:

0 g

Max positive g @ MTOW:

0 g

Range with normal tanks:

1013 km

547.02 nm

Max range with auxiliary external tanks:

0 km

0 nm

Max endurance @ min consumption speed:

05:37:00 h:min

Rate of climb @ SL:

0 m/s

0 ft/min

Rate of climb @ SL @MTOW:

0 m/s

0 ft/min

IGE max hovering altitude, MTOW:

3475 m

11398 ft

IGE max hovering altitude, empty:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

IGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

OGE max hovering altitude, MTOW:

2316 m

7596.48 ft

OGE max hovering altitude, empty:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, MTOW:

0 m

0 ft

OGE max hovering altitude, ISA+20°C, empty:

0 m

0 ft

Service ceiling ISA, MTOW:

4572 m

14996.16 ft

Max operating altitude, empty weight:

0 m

0 ft

Highest use Temperature:

0 °C

0 °F

Lowest use Temperature:

0 °C

0 °F

APU in HC:

Engine manufacturer:

Pratt & Whitney

Model:

PT6B-37A

Engines quantity:

1

Powerplant category:

turbine

Main rotor rotation speed:

0 rpm

Fuel consumption @ SL @ max continuous speed:

0 kg/kW/h

0 lbs/hp/h

Minimum consumption speed @ SL:

0 km/h

0 kt

Fuel consumption @ eco cruise speed @SL:

0 kg/h

0 lbs/h

Fuel consumption @ min consumption speed @ SL:

0 kg/h

0 lbs/h

Engines nominal power:

0 kW

0 hp

Transmission shaft max continuous power:

0 kW

0 hp

Transmission shaft max power:

0 kW

0 hp

Takeoff power 5 min:

0 kW

0 hp

OEI 30s power:

0 kW

0 hp

OEI 2min power:

0 kW

0 hp

OEI max continuous power :

0 kW

0 hp

OEI max continuous transmission power:

0 kW

0 hp

OEI 30 sec transmission power:

0 kW

0 hp

OEI 2 min transmission power:

0 kW

0 hp

Overall length:

13.01 m

42.6728 ft

Rotor diameter:

10.83 m

35.5224 ft

Tail rotor diameter:

1.94 m

6.3632 ft

Fuselage length:

11.17 m

36.6376 ft

Overall height:

3.77 m

12.3656 ft

Main rotor blades chord:

0 m

0 ft

Tail rotor blades chord:

0 m

0 ft

Mast tilt angle:

0 °

Noise at flyover, level:

88 dB EPNL

Noise at flyover, limit:

89 dB EPNL

Noise at takeoff, level:

90 dB EPNL

Noise at takeoff, limit:

91 dB EPNL

Noise at landing, level:

91 dB EPNL

Noise at landing, limit:

94 dB EPNL

Crew:

1

Max pax number:

7

Average price:

0 $
